主要尺寸和性能數(shù)據(jù)

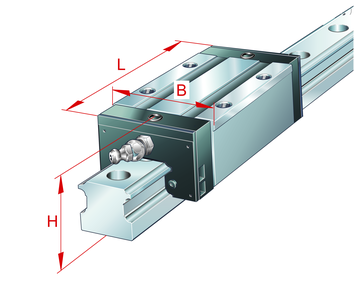

H | 45 mm | height system |
B | 60 mm | width carriage |
L | 91.6 mm | overall length carriage |
I C | 40,000 N | dynamic load rating, load direction I: compressive load |
I C0 | 80,000 N | static load rating, load direction I: compressive load |
II C | 37,800 N | dynamic load rating, load direction II: tensile load |
II C0 | 60,000 N | static load rating, load direction II: tensile load |
III C | 40,000 N | dynamic load rating; basic dynamic load rating, Load direction III: lateral load |
III C0 | 62,000 N | static load rating, Load direction III: lateral load |
≈m | 0.9 kg | 重量 |
